Description

Technical specifications:

• Steel frame
• Two rolls direct driven by a gear system
• Rolls are hardened
• Rolls shafts are special steel material hardened and ground
• Roll shafts housed by bearings
• Standard rolls
• Guide rolls
• Horizontal and vertical working position

Options:

• Digital Readout EURO 600,--
• Angle Lateral Guide Rolls EURO 900,--
• Double Speed Working   EURO 600,--

		PK 35

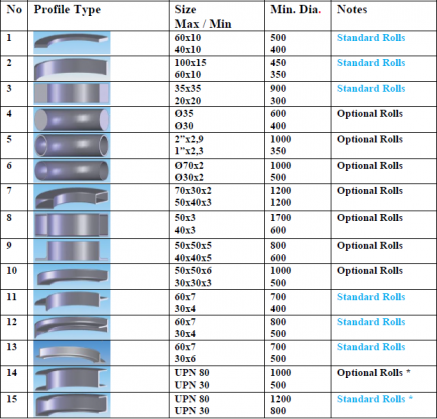

No.	Profile Type	Size	Min. Dia	Notes
1		60x10         40x10	500         400	Standard Rolls
2		100x15         60x10	450         350	Standard Rolls
3		35x35         20x20	900         300	Standard Rolls
4		Ø 35         Ø 30	600         400	Optional Rolls
5		Ø 70x2         Ø 30x2	1000         500	Optional Rolls
6		2”x2,9         1”x2,3	1000         350	Optional Rolls
7		70x30x2         50x40x3	1200         1200	Optional Rolls
8		50x3         40x3	1700         600	Optional Rolls
9		50x50x5         40x40x5	800         600	Optional Rolls
10		50x50x6         30x30x3	1000         500	Optional Rolls
11		60x7         30x4	700         400	Standard Rolls
12		60x7         30x4	800         500	Standard Rolls
13		60x7         30x4	700         500	Standard Rolls
14		UPN 80         UPN 30	1000         500	Optional Rolls*
15		UPN 80         UPN 30	1200         800	Standard Rolls*
* Special washer (spacer) can be necessary / ** Only with special Beam Bending Attachment         •Capacities are given for 260 N/mm² plate yielding strength

Note

Prices ex works, excl. 20% VAT.

Terms and conditions apply toGeneral Terms of Deliveryof the Austrian Association for the Machine-Building and Steel Construction Industry of 01 January 2002.We only sell under proprietary rights. The goods stay in our unrestricted property until completly payed.

Prices and mistakes are subject to change.
