Description

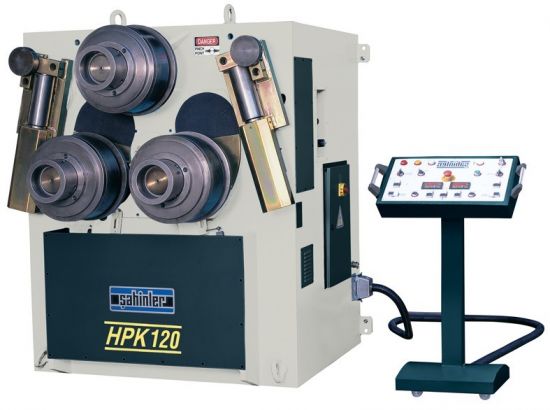

Standard Equipment

• Steel construction frame
• 3 rolls powered by hydromotor and planetary gearbox
• Horizontal and vertical working position
• Mobile control panel
• Hardened standard rolls
• Hardened and ground shafts made of high-tensile special steel
• Digital read-outs (2 pcs)
• 3-axis hydraulic lateral angle guide rolls
• Two-speed working system
• Hydraulic elements: Duplomatic (Italy) components used
• Electrical equipment: Siemens (Germany) or Telemecanique (France)
• Built according to EC safety directives (CE mark) and ISO 9000 certificate
• User’s manual in English

Options:

• NC Unit 7" Screen EURO 7.500,--

Capacity Chart:

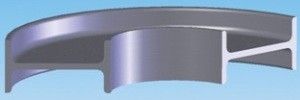

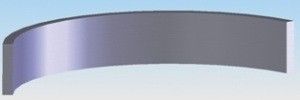

No	Profile Type	Size Max	Min. Dia.	Notes
1		125x25	1200	Standard Rolls
2		200x50	1000	Standard Rolls
3		65x65	750	Standard Rolls
4		Ø80	850	Optional Rolls
5		Ø5”x6,35	1500	Optional Rolls
6		Ø160x4	2800	Optional Rolls
7		120x40x4	1800	Optional Rolls
8		90x5	1800	Optional Rolls
9		120x120x12	1200	Optional Rolls
10		100x100x10	1200	Optional Rolls
11		100x11	800	Standard Rolls
12		100x11	1000	Standard Rolls
13		100x11	800	Optional Rolls
14		UPN 220	1000	Standard Rolls*
15		UPN 220	1200	Standard Rolls*
16		IPN 220	1000	Standard Rolls *
17		HEB 120 HEA 140	1200 1200	Standard Rolls *
18		UPN 120	10000	Optional Rolls **
19		IPN 160	5000	Optional Rolls **
20		HEB 100 HEA 120	1600 4000	Optional Rolls **

Note

Prices ex works, excl. 20% VAT.

Terms and conditions apply toGeneral Terms of Deliveryof the Austrian Association for the Machine-Building and Steel Construction Industry of 01 January 2002.We only sell under proprietary rights. The goods stay in our unrestricted property until completly payed.

Prices and mistakes are subject to change.
