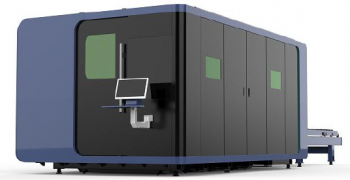

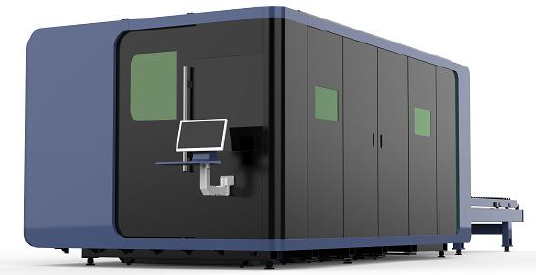

Technical Description – Fiber Laser Cutting Machine LD-3015E

Model: 3015E
Working Area: 3000 × 1500 mm
Maximum Linkage Speed: 170 m/min
Maximum Acceleration: 2.0 G
Machine Overall Dimensions: 10,000 × 3,000 × 2,400 mm
Overall Weight: 5,000 kg
Positioning Accuracy: ±0.03 mm
Repositioning Accuracy: ±0.02 mm
Z-Axis Travel: 350 mm
Laser Head: BOCI BLT421 Laser Head (6 kW)
Gantry Structure: Iron Welding Gantry
Power Source: Raycus 6000 W CE Global Version

Note

Prices ex works, excl. 20% VAT.

Terms and conditions apply toGeneral Terms of Deliveryof the Austrian Association for the Machine-Building and Steel Construction Industry of 01 January 2002.We only sell under proprietary rights. The goods stay in our unrestricted property until completly payed.

Prices and mistakes are subject to change.
