Manufacturer KK Kletzer
Stock number 9086
Machine model PCR 100
Year of construction New
Time of delivery about 12-16 weeks
Price € 31.399,00

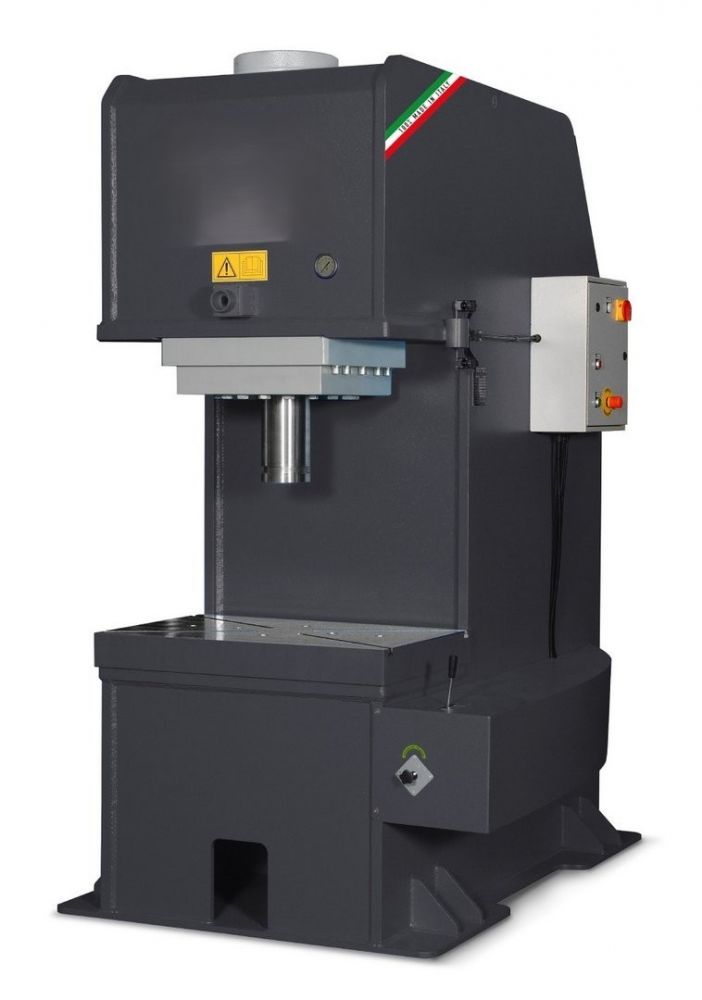

PCR 100

Click to enlarge image

Print view
Add to watchlist
Print view

Technical data

pressure 100 t
stroke 500 mm
table area 800x600 mm
daylight 615 mm
rapid traverse 26 mm/sec
working speed 4 mm/sec.
motor 4 kW
messurements (LxWxH) 1600 x 900 x 2300 mm
weight approx. 3100 kg

Description

Features:

  • Two-stage hydraulic pump – integrated into the machine frame
  • Lever and push-button control – with simultaneous two-hand operation for safety
  • Cylinder stroke: 500 mm – suitable for a wide range of applications
  • Milled lower worktable – solid and precision-machined
  • Two working speeds – for fast yet accurate operation
  • Adjustable maximum pressure – adaptable to different tasks
  • Integrated pressure gauge – for precise pressure monitoring during operation

Note

Prices ex works, excl. 20% VAT.

Terms and conditions apply toGeneral Terms of Deliveryof the Austrian Association for the Machine-Building and Steel Construction Industry of 01 January 2002.We only sell under proprietary rights. The goods stay in our unrestricted property until completly payed.

Prices and mistakes are subject to change.
