Manufacturer KK-Industries
Stock number 47-10053
Machine model Tafelschere schwingschnitt KK kletzer SW 3200 x 13 mm
Year of construction New
sheet length 3.200 mm
sheet thickness 13,0 mm
Time of delivery on Stock
Price € 39.900,00
Special price € 36.000,00
Tafelschere schwingschnitt KK kletzer SW 3200 x 13 mm

Click to enlarge image

Print view
Add to watchlist
Print view

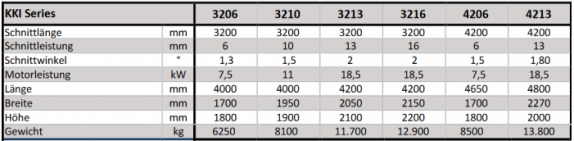

Technical data

sheet length 3.200 mm
sheet thickness 13,0 mm
total power requirements 18,5 kW
weight approx. 11700 kg
messurements (LxWxH) 4000 x 1700 x 1800 mm

Description


Multi-edge blades for cutting aluminum, carbon steel, and stainless steel
 Cutting-line illumination and wire for shadow-line cutting
• Stroke counter •
Quick cutting-length adjustment •
Hydraulic and electrical overload protection •
Squaring arm and front support arms •
Bed infill plates with ball transfers •
Delta inverter with ball screw and polished rod with 0.01 mm accuracy •
Backgauge adjustment according to blade gap •
Backgauge retraction feature •
Sub-program and programming loop •
Sequence repeat function •
Auto-cutting (Flying cut)
