Manufacturer KK Kletzer
Stock number 10-10011
Machine model Schweißtisch SWT 65-105/16S Ø16 Flex 1450x950
Year of construction New
Time of delivery
Price € 4.226,00

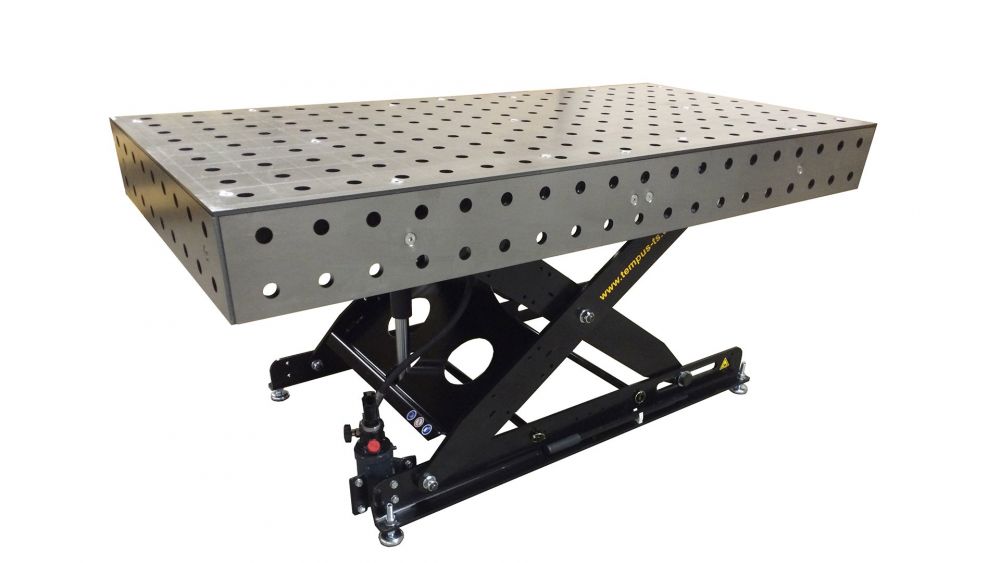

Schweißtisch SWT 65-105/16S Ø16 Flex 1450x950

Click to enlarge image

Print view
Add to watchlist
Print view

Technical data

table height 650 - 1050 mm
messurements (LxWxH) 1450 x 950 x 650 bis 1050 mm
table width 950 mm
table length 1450 mm
weight approx. 428 kg

Description

This enables the user to flexibly adjust the height of the work surface to the respective requirements in order to improve economy and ergonomics. The standard height adjustment is carried out by manual hydraulics in the range of 650 - 1050 mm (higher or lower on request). Like the SST fix series, the worktop also has a 100 x100mm Ø 28 grid. Used in combination with processing machines, testing or post-processing devices (deburring, marking, testing to the height of the clamping table of the machine can be adjusted. The table systems can be easily changed by means of a lifting truck. These portable systems, with the different fastening and securing options for the maintenance of injection molding and die-casting tools have already been proven. After removal from the machine, the tools can be safely serviced on site and taken for repairs for maintenance Table 2 below gives an overview of the available standard models.


For more information please follow this link:

https://www.kk-industries.eu/de/download/ac564ab2-98dd-11ea-ad14-fc1d9aac8fc9

Documents

3D Schweißtische KKI Preise und Katalog KKI Schweißtische Spezialarbeitstische mit System Extra Katalog Neu

  • Herunterladen 3D Schweißtische KKI Preise und Katalog KKI Schweißtische Spezialarbeitstische mit System Extra Katalog Neu (            3 MB
)
    Download
  • 3D Schweißtische KKI Preise und Katalog KKI Schweißtische Spezialarbeitstische mit System Extra Katalog Neu ( 3 MB )

Note

Prices ex works, excl. 20% VAT.

Terms and conditions apply toGeneral Terms of Deliveryof the Austrian Association for the Machine-Building and Steel Construction Industry of 01 January 2002.We only sell under proprietary rights. The goods stay in our unrestricted property until completly payed.

Prices and mistakes are subject to change.
